Smart Emergency Call Box Systems

Microtrans Emergency Call Box (SOS) is specially designed for providing emergency communication solution in adverse environment. After series of design and development of years, Microtrans have innovated advance ECB model# M ECB_OFC and M ECB_GSM comprising state-of-art technology that provide intelligent communication link and solution when personnel are in emergency on highway and mining areas and seeking for help from Administration.

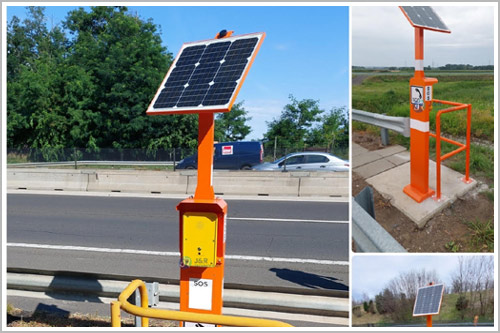

This system is easy to install and operate therefore widely used in Highway, mines, road sides, parks, prisons, banks etc.

Functional Features

Push to call

  • Single push button to dial pre-designated number and connect the call

Hands-free conversation

  • Talk in hands-free mode

Network compatible

  • GSM, Cellular mobile, optical fibre cable, Ethernet (VoIP).

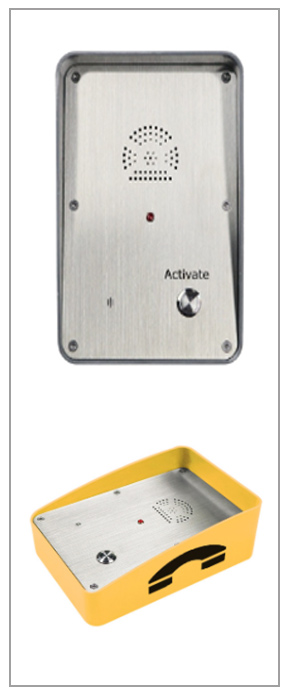

Vandal-proof and Weather resistant substation

  • Stainless steel faceplate, vandal resistant, surface mount or flush mount, Enclosure compliance IP 65.

Echo-cancellation

  • Advanced echo cancellation technology to realize full-duplex real-time voice call

Filter background noise

  • Advance technology to filter background noise and deliver clear voice to attendant.

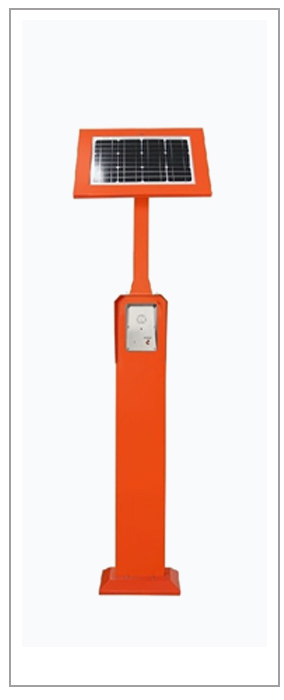

Solar power option for remote area

  • Operating on solar powered DC Volt: 12V DC / 24V DC

Automatic Volume Control

  • Adaptive Volume Control system for automatic volume adjustment

Unique ID number

  • Assigned unique ID number to each ECB

Technical Specification

Casing Material

  • Fibre-reinforced plastic body / Stainless Steel / Mild Steel

Colors

  • Yellow / Orange/ other colors to special order

Push button

  • Vandal resistant stainless steel buttons

Temperature

  • Operating: -30°C to +65°C
    Storing: -40°C to +75°C

Weather Resistance

  • IP65

Ringing Tone

  • Shrill warble tone 90 dBA @ 1 metre typical

M.T.B.F.

  • Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight

  • Up to 2.5 kg depending on option

Emergency Telephone Call Box - GSM Technology I Model# M ECB_GSM101A

KEY FEATURES

  • Cabinet body made of fibre reinforced plastic / Stainless Steel / Mild Steel
  • Water resistant IP 65 Grade Cabinet
  • Heavy duty vandal resistance stainless steel push-button & Built in LED indication
  • Body with grounding connection protection
  • Noise canceling microphone
  • High audio output and sound quality from tamper resistant speaker
  • Easy to Install, no exposed cables, no on-site configuration required
  • 3 Day Redundancy in bad weather condition
  • GSM/GPRS 2G for voice & data, Option: 4G LTE

TECHNICAL SPECIFICATIONS

Physical
Dimension of Cabinet 220 x 500 x 320 mm (D x H x W) or customized
Base Pole height (including Solar Panel) ≥ 2200 mm
Weight (including internal parts) Max 45 Kg.
Push Button >20 mm, IP 67
Operating Voltage DC 12V
Power consumption/td> ≥ 4.5W
Speaker Water resistant, 6W, impedance 8 ohms
Microphone Dynamic mic, sensitivity -38±3 dB
Environmental
Temperature Range -20 to +60 degree C
Humidity (including Solar Panel) 95% non-condensing
Power
Charge Controller MPPT Based Charge Controller
Solar panel 12V/30W
Internal battery 12V 12Ah SMF Or LiFePO4 Battery
Alarm Door Status, Solar Panel Voltage, Battery Voltage

Emergency Telephone Call Box - Fibre Optic Technology I Model# M ECB_OFC101A

KEY FEATURES

  • Cabinet body made of fibre reinforced plastic / Stainless Steel / Mild Steel
  • Water resistant IP 65 Grade Cabinet
  • Heavy duty vandal resistance stainless steel push-button & Built in LED indication
  • Body with grounding connection protection
  • Noise canceling microphone
  • High audio output and sound quality from tamper resistant speaker
  • Easy to Install, no exposed cables, no on-site configuration required
  • 3 Day Redundancy in bad weather condition
  • Fibre optic connectivity

TECHNICAL SPECIFICATIONS

Physical
Dimension of Cabinet 220 x 500 x 320 mm (D x H x W) or customized
Base Pole height (including Solar Panel) ≥ 2200 mm
Weight (including internal parts) Max 45 Kg.
Push Button >20 mm, IP 67
Operating Voltage DC 12V
Power consumption/td> ≥ 4.5W
Speaker Water resistant, 6W, impedance 8 ohms
Microphone Dynamic mic, sensitivity -38±3 dB
Environmental
Temperature Range -20 to +60 degree C
Humidity (including Solar Panel) 95% non-condensing
Power
Charge Controller MPPT Based Charge Controller
Solar panel 12V/30W
Internal battery 12V 12Ah SMF Or LiFePO4 Battery
Alarm Door Status, Solar Panel Voltage, Battery Voltage
